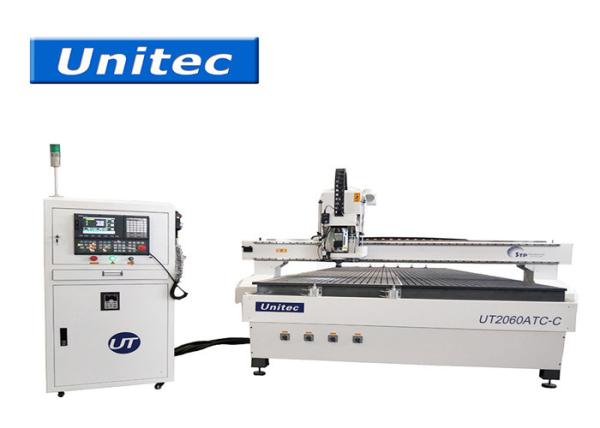

2mX6m Popular Export Woodworking Atc Drilling CNC Router
1. Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
2. Japanese YAKSAWA servo motor makes machine stable running with low noise, high speed and high accuracy.
3. Italy HSD spindle makes machine with high precision and long service time and stable movement.
4. Configured with linear ATC of 10 tools ,the machine can change tools speedy and freely. Changing tools in 8 seconds.
5. Tool sensor enables the machine compensate the tolerance of the tool length.
6. Strong power suction of Yongdun free-oil pump.
7. Imported Taiwan SYNTEC control system, separated keyboard control, color LCD display add machine more versatility.
8. Strong dust collector ensures site cleanliness during the machine operation.
9. Automatic lubricating system, one touch can finish periodic maintenance easily.
Applications and Material
- Furniture Industry: wood door cabinet classic furniture panel furniture etc
- Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
- ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
|
XYZ Travel Size | 2000X6000X220mm | |
|
Max Working Size | 2000X6000X220mm | |
| Table Size | 2050X6100mm | |
| Transmission Type | XYZ XYZ ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | vacuum | |
| Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle |
| Tool Changer | Linear Tool Changer | |
| Spindle Speed | 24000rpm | |
|
Max Travel Speed | 30000mm/min | |
| Max Work Speed | 20000mm/min | |
| Motor | AC servo motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | / Ncstudio or Syntec | |
|
Processing Accuracy | 0.05mm | |
|
Repeat Positioning Accuracy | 0.01mm | |
| File Format | G/PLT G code or PLT | |
| Overall Weight | 2200KG | |
| Overall Dimension | 3400X2200X1900mm | |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
